Liverani




SINGLE SCREW CONTINUOUS PRESSES

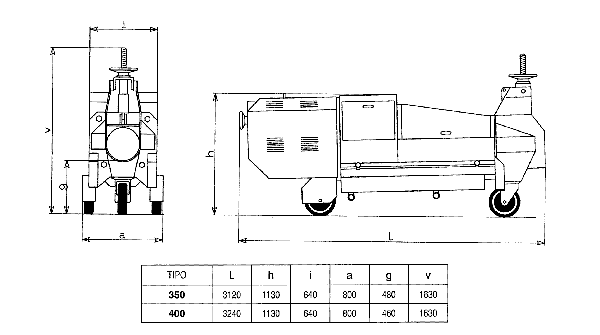

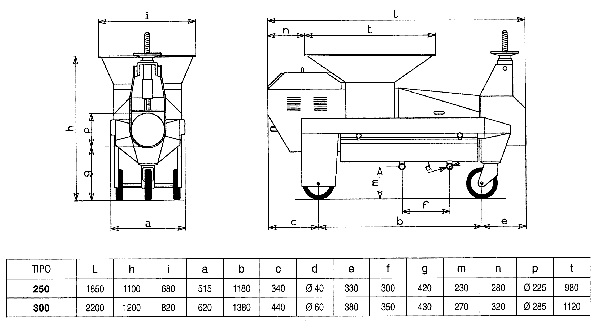

ENOPRESS/ECOPRESS 250-300	ENOPRESS/ECOPRESS 350-400

Single screw continuous presses suitable for pressing freshly picked grapes, crushed stemmed grapes and fermented husks, also employed to estract juice or liquids from wet fibrous products. All models are actioned by a threephase electric motor. The rotation speed of the screw, obtained by a gearbox, is between 11 and 12 Rpm for models 250 and 300, while for models 350 and 400 a speed variator reduces even more the rotation of the screw from 3 to 9 Rpm. All parts in contact with the product (cage cover, cage, screw conveyor, hopper) are made of stainless steel, except for the the screw and the maltese cross which are mode of antiacid bronze. The cage is made of longitudinal trapezoidal shaped bars with a minimun slot of 0.5 mm large. The pressure regulation of the outgoing mass of husk is made manually by a handwheel. All press types are manufactured according to the CE standards and are equipped with all necessary protection parts and a control panel for the emergency stop of the machine.

Type	Production (Kg/h)		Weight (kg)	Motor			Efficiency	Speed (Rpm/min)	Code
	grape-harvest and dregs	destalked grapes		Type	HP	kW
250	1400-1800	2000-3000	420	TF 230-400V	4,0	3,0	80-85%	12	40250300
300	2000-2500	3500-4000	630	TF 230-400V	5,5	4,1	80-85%	11	40300300
350	4000-4500	5500-6500	1050	TF 230-400V	7,5	5,5	80-85%	3-9	40350400
400	5500-6500	7000-8000	1200	TF 230-400V	10	7,5	80-85%	3-9	40400300
